Full Specs & Features
Depth : 51'
Height : 31'
Width : 62'

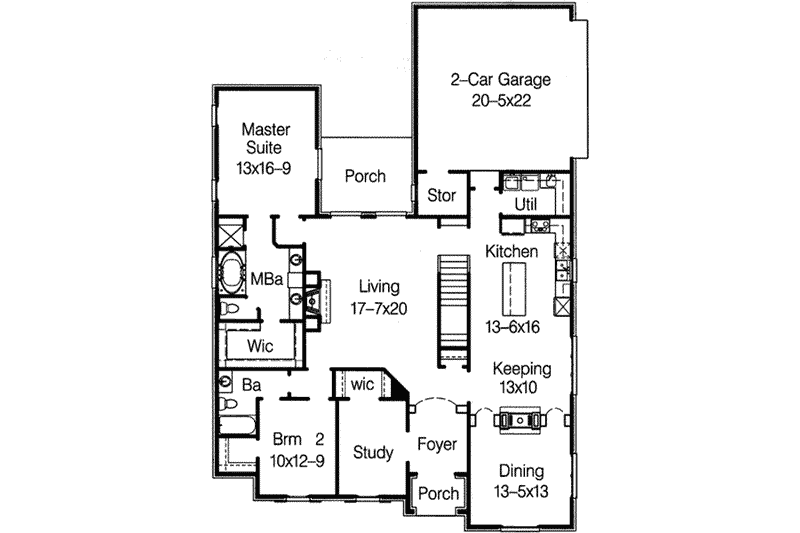

First Floor: 2109 sq/ft height 10'
Garage: 515 sq/ft height 10'
Porch: 150 sq/ft height 9'

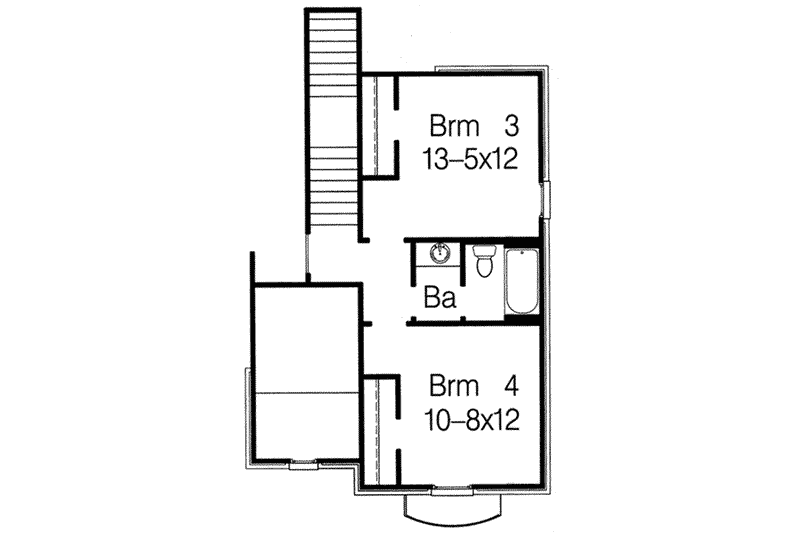

Second Floor: 462 sq/ft height 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 16:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Side Entry Garage
Suited For View Lot
Covered Front Porch
127 sq/ft width 10' x depth 12' 9"
161 sq/ft width 13' 5" x depth 12'
128 sq/ft width 10' 8" x depth 12'
174 sq/ft width 13' 5" x depth 13'
449 sq/ft width 20' 5" x depth 22'
130 sq/ft width 13' x depth 10'
216 sq/ft width 13' 6" x depth 16'
351 sq/ft width 17' 7" x depth 20'
217 sq/ft width 13' x depth 16' 9"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
