Key Specs
2419
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 47-692
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

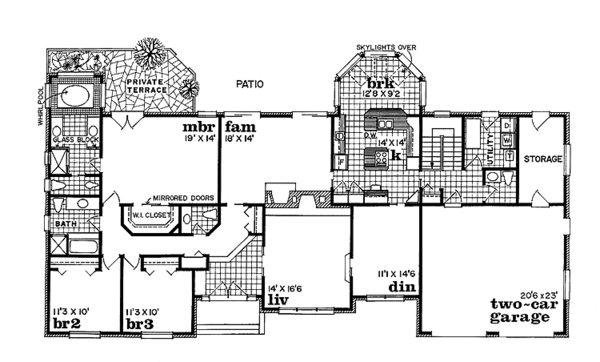

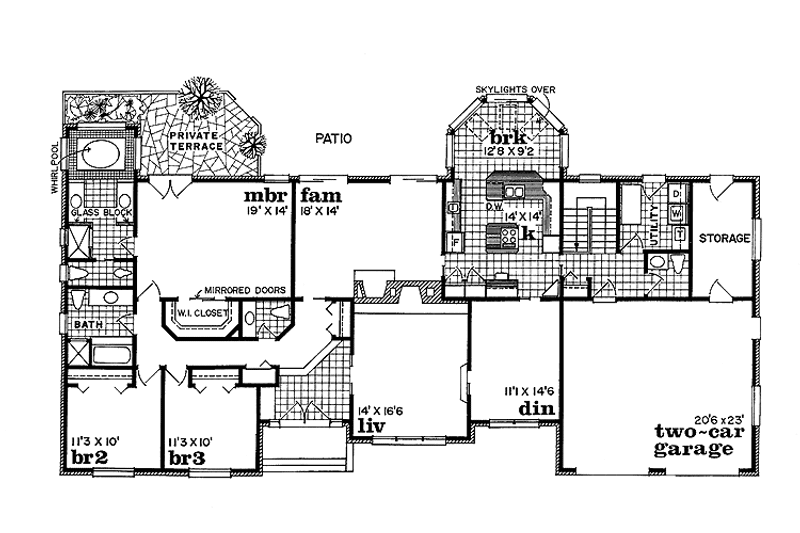

Floor Plans
Full Specs & Features
Dimension
Depth : 46' 8"
Height : 20'
Width : 85' 2"
Area
First Floor: 2419 sq/ft height 8'
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Living Room / Parlor
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms
3rd BR Closet:
12 sq/ft width 2' x depth 6'
Basement Foundation:
3974 sq/ft width 46' 8" x depth 85' 2"
Bedroom 2:
112 sq/ft width 10' x depth 11' 3"
Bedroom 2 Closet:
16 sq/ft width 2' x depth 8'
Bedroom 3:
112 sq/ft width 10' x depth 11' 3"
Bedroom 3 Closet:
16 sq/ft width 2' x depth 8'
Breakfast Room:
116 sq/ft width 9' 2" x depth 12' 8"
Crawlspace Foundation:
3974 sq/ft width 46' 8" x depth 85' 2"
Dining Room:
160 sq/ft width 14' 6" x depth 11' 1"
Foyer:
72 sq/ft width 6' 7" x depth 11' 1"
Garage:
471 sq/ft width 23' x depth 20' 6"
Hall Bathroom:
73 sq/ft width 9' 2" x depth 8'
Hall Closet:
10 sq/ft width 5' 3" x depth 2'
Kitchen:
196 sq/ft width 14' x depth 14'
Living Room:
231 sq/ft width 16' 6" x depth 14'
Master Bathroom:
154 sq/ft width 19' 3" x depth 8'
Master Bedroom:
266 sq/ft width 14' x depth 19'
Master Closet:
48 sq/ft width 5' 3" x depth 9' 2"
Powder Room:
27 sq/ft width 4' 7" x depth 6'
Utility Room:
72 sq/ft width 8' 5" x depth 8' 8"
Wash Room:
26 sq/ft width 5' 3" x depth 5'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

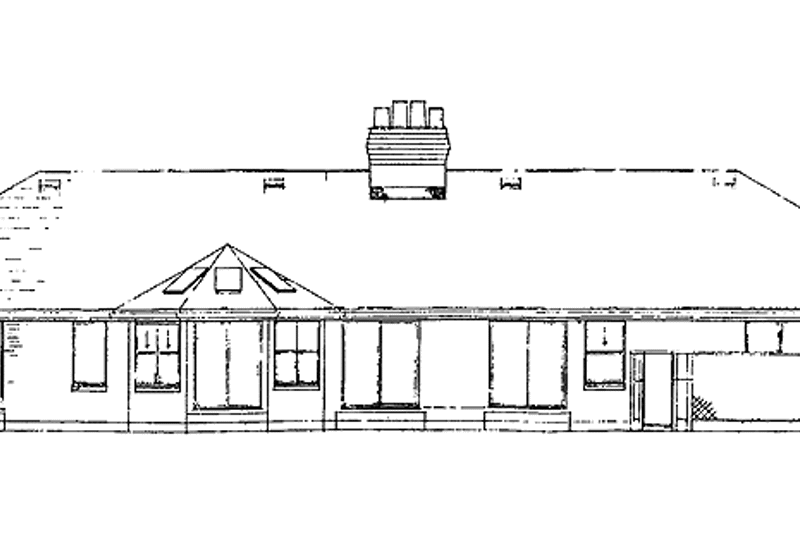

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
