PLAN 888-16
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
This Modern Ranch House was designed around the concept of indoor-outdoor living. A Covered Living Porch runs the entire length of the house creating a wonderful outdoor living space that draws inside out, and outside in. The ability to flow in an out of every room reinforces the concept of indoor-outdoor living. This 2 bedroom, 2 bath house features an open Great Room, anchored by a generous Island Kitchen that is perfect for cooking and entertaining. The long narrow design suits both narrow sites and expansive lots.
Floor Plans

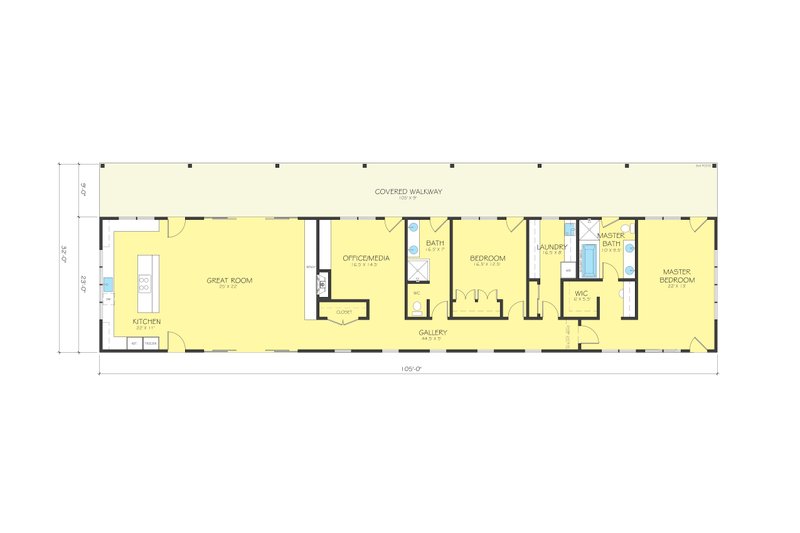

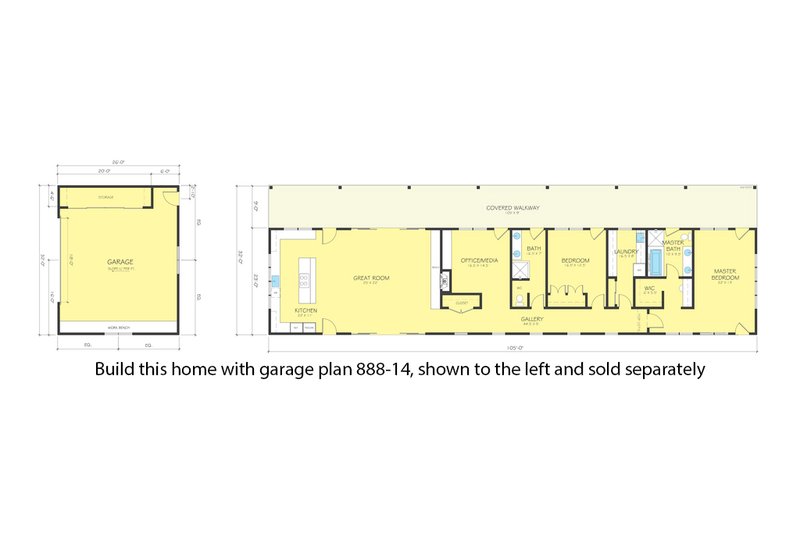

Floor Plan - Main Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 32'
Height : 0"
Width : 105'
Area
Main Floor : 2415 sq/ft
Porch : 965 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Exterior Wall Framing
Exterior Wall Finish : Board and Batten Siding
Framing : 2X6
Additional Room Features
Den Office Study Computer
More
Economical To Build
What's Included In This Plan Set
- COVER PAGE: Cover Sheet: Showing architectural rendering of residence
- FOUNDATION PLAN: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- FLOOR PLAN: Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- ROOF PLAN: An overhead "birds-eye" view of the roof, describing roof slope
- ELEVATIONS: A blueprint picture of all four sides showing exterior materials and measurements.
- SECTIONS: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- ELECTRICAL PLAN: Shows the locations of lights, receptacles, switches, etc.
- TYPICAL WALL SECTION & DETAILS
