PLAN 453-101
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
To accompany its dramatic arched entry, this house offers exterior finish
options including brick, siding and stucco. The floor plan offers a formal
living room, a formal dining room conveniently located next to the kitchen and
a spacious family room with fireplace. A walk-in pantry creates ample food
storage. The breakfast area benefits from the light and space of a bay window.
The second-floor master suite features large, angled walk-in closets and French
doors leading to a luxurious master bath. Suites 2 and 3 are also on the second
floor along with a big bonus room over the garage. Please specify basement,
slab or crawlspace foundation when ordering.
Floor Plans

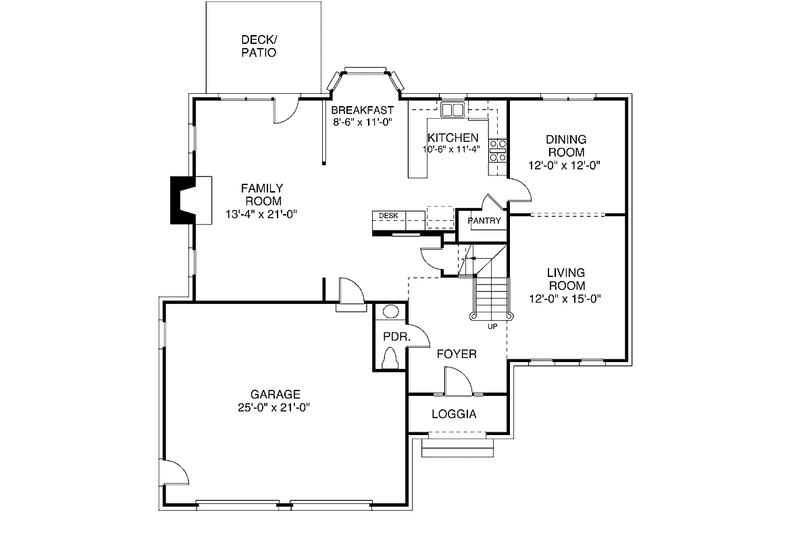

Floor Plan - Main Floor

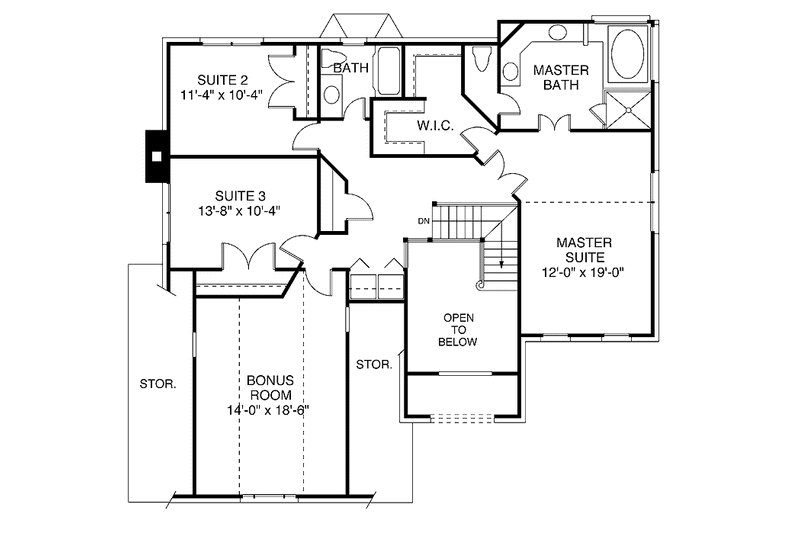

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 46' 2"
Height : 29'
Width : 49' 4"
Area
Bonus: 289 sq/ft
First Floor: 1214 sq/ft
Second Floor: 1124 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Additional Room Features
Family Room Keeping Room
Rooms
Bedroom 2:
117 sq/ft width 11' 4" x depth 10' 4"
Bedroom 3:
141 sq/ft width 13' 8" x depth 10' 4"
Bonus Room - Finished:
259 sq/ft width 14' x depth 18' 6"
Breakfast Room:
93 sq/ft width 8' 6" x depth 11'
Dining Room:
144 sq/ft width 12' x depth 12'
Family Room:
279 sq/ft width 13' 4" x depth 21'
Garage:
525 sq/ft width 25' x depth 21'
Kitchen:
118 sq/ft width 10' 6" x depth 11' 4"
Living Room:
180 sq/ft width 12' x depth 15'
Master Bedroom:
228 sq/ft width 12' x depth 19'
What's Included In This Plan Set
This plan typically includes:Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Foundation Plan(s): Dimensioned and detailed foundation plan (type as listed on home plan description). Typical foundation details, wall sections, and cornice details necessary for construction.
- Floor Plan(s): Dimensioned and detailed floor plans

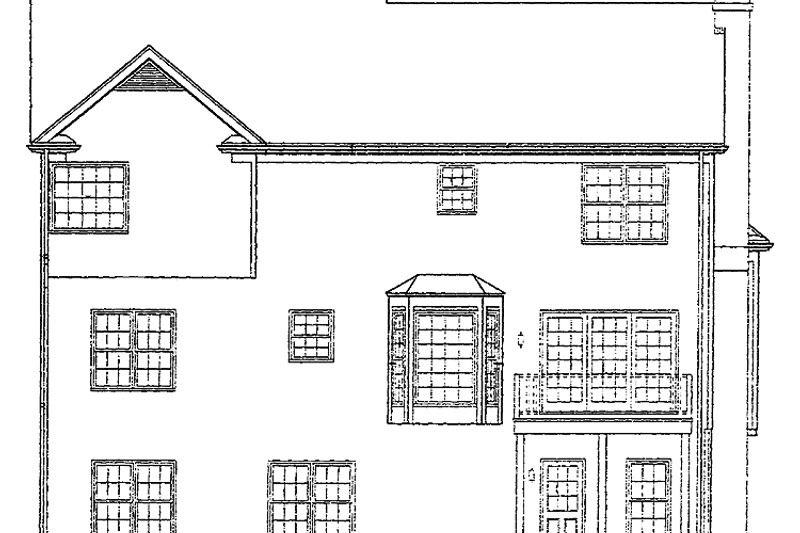

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
