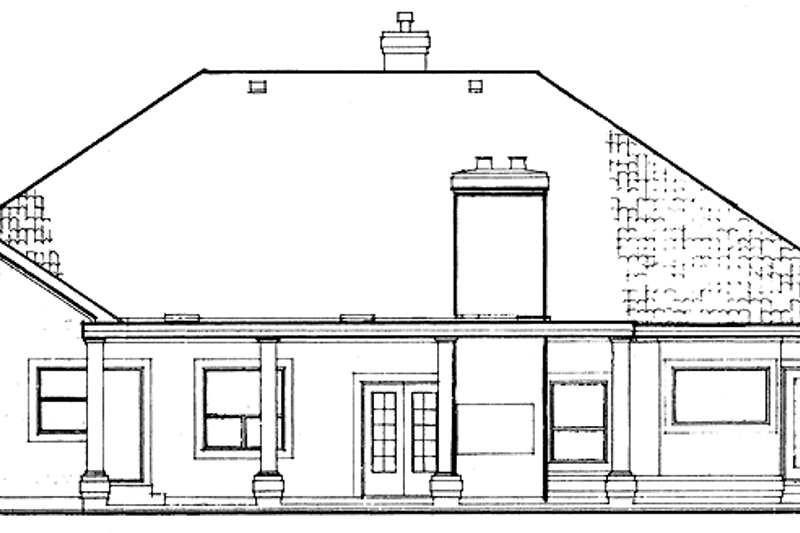

House Blueprint - Mediterranean Exterior - Rear Elevation Plan #47-1011

House Blueprint - Mediterranean Floor Plan - Main Floor Plan #47-1011

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help

Home > Style > Mediterranean House Plans

Key Specs

2257
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$165.75
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$420.75
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$127.50
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$250.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$127.50
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$72.25
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets$0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License	$845.75
	Allows you to build this home as many times as you want.

Subtotal

NOW $1013.17

You save $178.79 (15% savings)

Sale ends soon!

Also order by phone: 1-866-445-9085

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-866-445-9085

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBFALL

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 47-1011

Home > Style > Mediterranean House Plans

Key Specs

2257
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

A covered and skylit rear patio, graced by an array of columns and a built-in barbecue, is the highlight of this casual design. The interior is open and lives easily. The breakfast room and efficient kitchen overlook the sunken family room, which is warmed by a hearth. The master bedroom boasts a walk-in closet, private patio and luxurious bath with a sunken whirlpool tub. A den, with walk-in closet, can be used as a fourth bedroom. Additional bedrooms share a full bath that has patio access.

Floor Plans

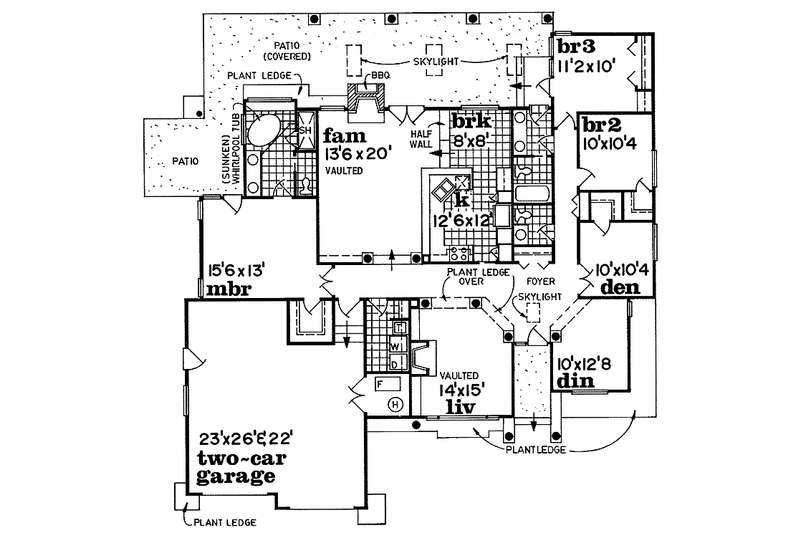

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 67' 6"

Height : 26'

Width : 64'

Area

First Floor: 2257 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Split Bedrooms

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

3rd BR Closet:

13 sq/ft width 6' 8" x depth 2'

Bedroom 2:

103 sq/ft width 10' 4" x depth 10'

Bedroom 2 Closet:

13 sq/ft width 3' 4" x depth 3' 11"

Bedroom 3:

111 sq/ft width 10' x depth 11' 2"

Bedroom 3 Closet:

13 sq/ft width 3' 4" x depth 3' 11"

Breakfast Room:

64 sq/ft width 8' x depth 8'

Crawlspace Foundation:

3255 sq/ft width 52' 6" x depth 62'

Den/Office or Bedroom 1:

103 sq/ft width 10' 4" x depth 10'

Dining Room:

126 sq/ft width 12' 8" x depth 10'

Foyer:

55 sq/ft width 11' x depth 5'

Gathering Room:

270 sq/ft width 20' x depth 13' 6"

Hall Bathroom:

61 sq/ft width 12' 4" x depth 5'

Hall Closet:

10 sq/ft width 2' x depth 5'

Kitchen:

150 sq/ft width 12' x depth 12' 6"

Living Room:

210 sq/ft width 15' x depth 14'

Master Bathroom:

110 sq/ft width 11' 8" x depth 9' 6"

Master Bedroom:

201 sq/ft width 13' x depth 15' 6"

Master Closet:

34 sq/ft width 5' 8" x depth 6'

Porch - Front:

50 sq/ft width 10' x depth 5'

Porch - Rear:

452 sq/ft width 13' 6" x depth 33' 6"

Powder Room:

25 sq/ft width 5' x depth 5'

Utility Room:

56 sq/ft width 10' x depth 5' 8"

What's Included In This Plan Set

See a sample plan set

Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.

Questions? Call 1-866-445-9085

Plan Set

PDF Set:
$1013.17

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1130.98

5 printed plan sets mailed to you.

8 Copy Set:
$1248.79

8 printed plan sets mailed to you.

Reproducible Set:
$1248.79

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2026.33

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement:
$233.75

Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement:
$233.75

Ideal for sloping lot, lower level of home partially underground.

Slab:
$233.75

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$51.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$420.75

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$127.50

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$127.50

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$0.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unlimited Use License:
$845.75

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
