PLAN 124-1287

Photographs may show modified designs.

Save
Home  /  Style  /  Contemporary

Key Specs


Plan Sq Ft

2077
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
$975.00
Best Price Guaranteed*
Also order by phone: 1-866-445-9085
Cost-to-Build Estimates

Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-866-445-9085
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-866-445-9085
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 124-1287

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Plan Description

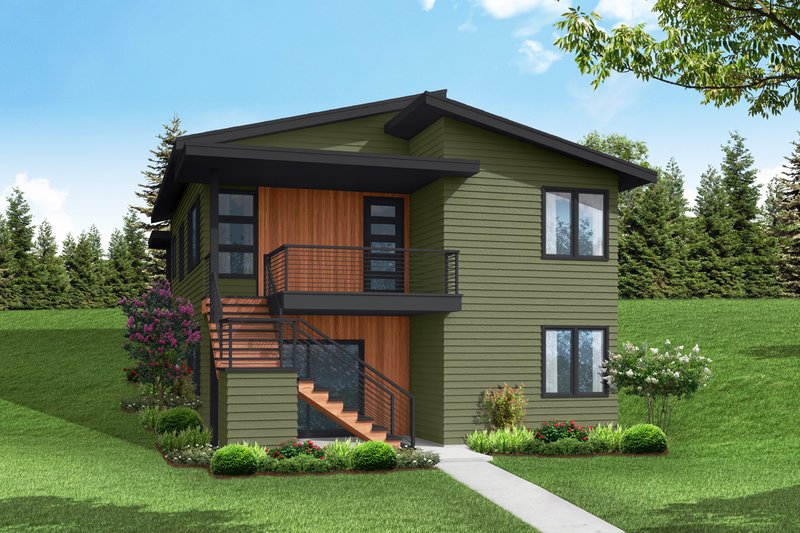

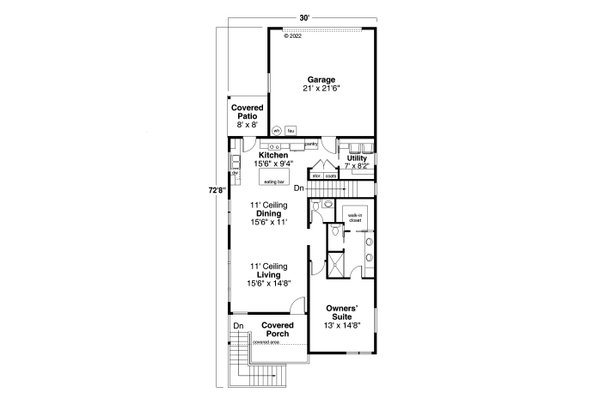

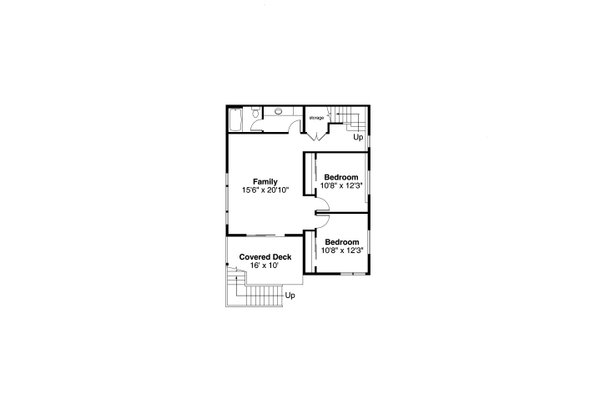

This plan has a rustic twist to its modern appeal that is built for an uphill sloping lot. With both floors having entrances, the house plan is dually accessible. Walking into the front floor, you enter the living room and proceed into the dining room. As you make your way back, you finally enter the kitchen with a nice sized eating bar and a door for exterior access to the backyard. The garage makes up the very rear of the house, with 2 bays that are entered through the rear. Upon entering the home from the garage you will find yourself coming into the kitchen to the right and utility room to the left, an easy place to drop your dirty or worked in clothes. Three bedrooms in this modern gem make this a perfect family home, even more so since the Master Suite is located on the main level of the home while the two bedrooms share the lower basement floor with the large Family Room. Both the front and back of the home have covered areas to keep you safe from any weather.

Full Specs & Features


Dimension

Depth : 72' 8"

Height : 27' 6"

Width : 30'

Area

Basement : 932 sq/ft

Garage : 484 sq/ft

Main Floor : 1145 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 3/12

Roof Framing : Truss/Stick

Roof Load : 25

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2x6

Bedroom Features

Lower Level Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Garage Features

Rear Entry Garage

Rear Garage

Lot Characteristics

Suited For Narrow Lot

Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

What's Included In This Plan Set


Please note, if ordering a PDF Print Set, it is not-modifiable. The CAD set is best for making local modifications. The "5 set + PDF" combo contains a non-modifiable PDF Print Set. The "8 set + PDF" combo contains a non-modifiable PDF Print Set.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
» See important information before purchasing.
Questions? Call 1-866-445-9085

Plan Set

PDF Print Set:
$975.00
A non-modifiable, print only PDF file
5 Copy and PDF Set:
$1194.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Eight Copy and PDF Set:
$1304.00
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
PDF Master Set:
$1955.00
An unlocked, modifiable PDF file
CAD Set:
$2095.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Master Builder Package:
$2345.00
Includes CAD Set, PDF Masters and Unlimited Build License
Study Set:
$745.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse:
$325.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
