Full Specs & Features
Depth : 46'
Height : 29'
Width : 54' 4"

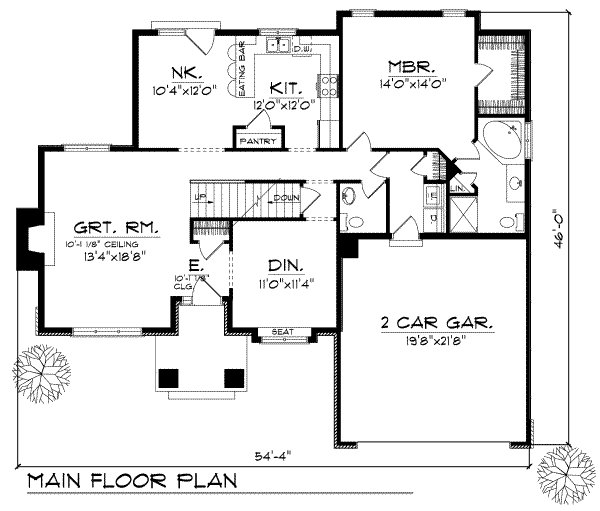

First Floor: 1365 sq/ft

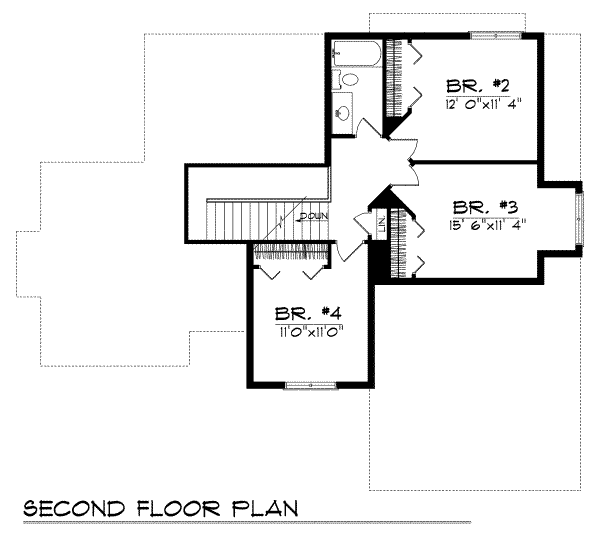

Second Floor: 679 sq/ft
Primary Pitch : 10:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Great Room Living Room
Suited For View Lot
123 sq/ft width 10' 4" x depth 12'
124 sq/ft width 11' x depth 11' 4"
426 sq/ft width 19' 8" x depth 21' 8"
248 sq/ft width 13' 4" x depth 18' 8"
144 sq/ft width 12' x depth 12'
196 sq/ft width 14' x depth 14'
What's Included In This Plan Set

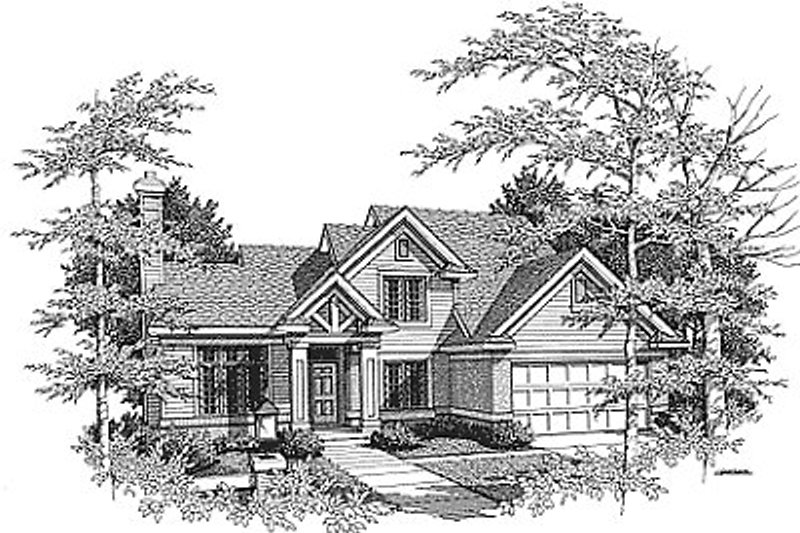

- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
