Full Specs & Features
Depth : 52'
Height : 28' 8"
Width : 41'
Basement Unfinished: 1036 sq/ft
First Floor: 1036 sq/ft
Garage: 751 sq/ft
Porch: 162 sq/ft
Second Floor: 958 sq/ft
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 9:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : 2x6
Additional Room Features
Great Room Living Room
Play Flex Room
Front Entry Garage
Suited For View Lot
Covered Front Porch
Grill Deck Sundeck
width 10' 4" x depth 11'
width 11' x depth 11'
width 14' x depth 11'
width 13' x depth 11' 8"
490 sq/ft width 22' x depth 20' 4"
260 sq/ft width 11' x depth 23' 8"
width 14' x depth 16'
width 10' 8" x depth 12'
width 17' x depth 14'
What's Included In This Plan Set
- Cover Page: Front elevation and informative reference sections including: general notes and design criteria
- Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.

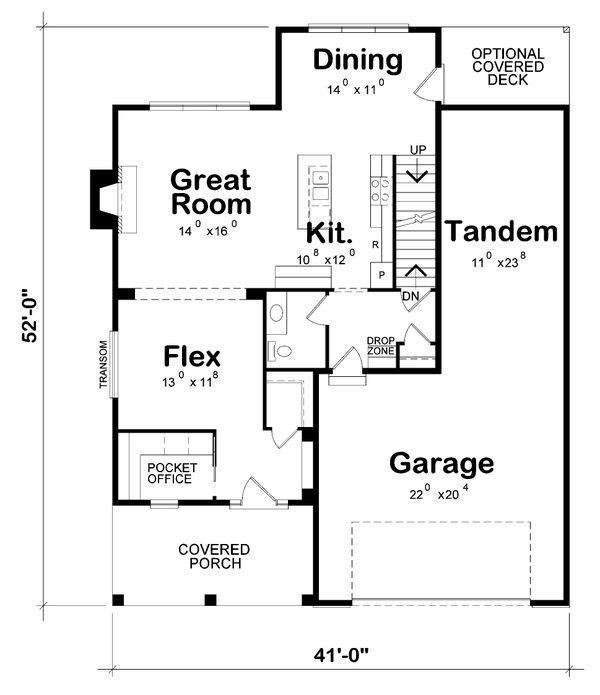

- Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

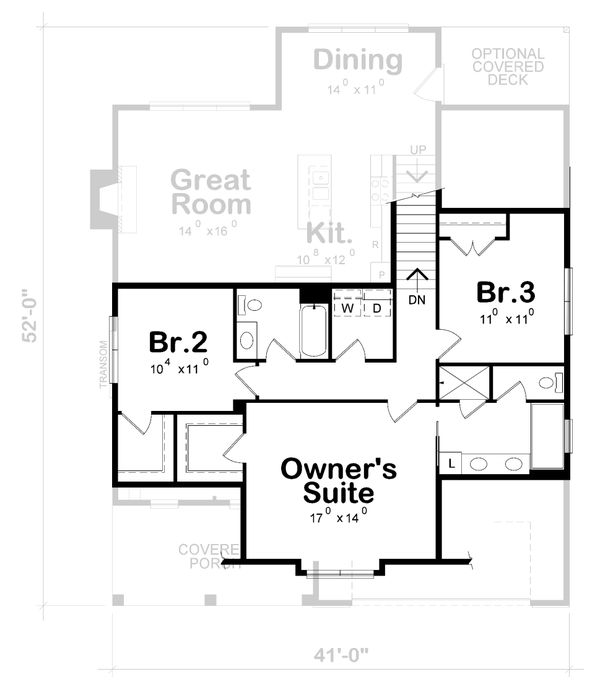

- Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
- Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
- Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
