Key Specs
1934
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-866-445-9085
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 21-310
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description

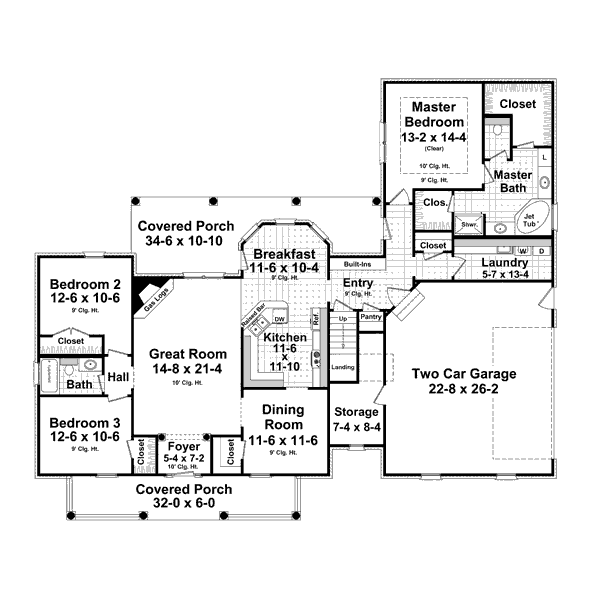

Floor Plans
Full Specs & Features
Dimension
Depth : 60'
Height : 25'
Width : 70' 8"
Area
Bonus: 430 sq/ft
First Floor: 1934 sq/ft height 9'
Garage: 729 sq/ft
Ceiling
Bonus Ceiling : 8'
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : stick
Roof Load : 30 lbs psf
Roof Type : Hip/Gable
Secondary Pitch : 14:12
Exterior Wall Framing
Exterior Wall Finish : brick/siding
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Great Room Living Room
Play Flex Room
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
131 sq/ft width 12' 6" x depth 10' 6"
Bedroom 3:
131 sq/ft width 12' 6" x depth 10' 6"

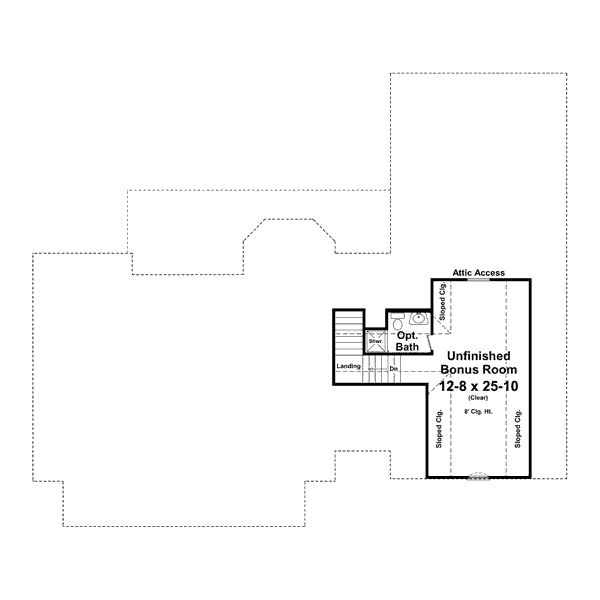

Bonus Room - Unfinished:
327 sq/ft width 12' 8" x depth 25' 10"
Breakfast:
118 sq/ft width 11' 6" x depth 10' 4"
Dining Room:
132 sq/ft width 11' 6" x depth 11' 6"
Garage:
593 sq/ft width 22' 8" x depth 26' 2"
Kitchen:
136 sq/ft width 11' 6" x depth 11' 10"
Laundry Room:
74 sq/ft width 5' 7" x depth 13' 4"
Master Bedroom:
188 sq/ft width 13' 2" x depth 14' 4"
Porch - Front:
192 sq/ft width 32' x depth 6'
Porch - Rear:
373 sq/ft width 34' 6" x depth 10' 10"
Storage:
61 sq/ft width 7' 4" x depth 8' 4"
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Plan Set
$1485.00
$1595.00
$1680.00
$1850.00
$2075.00
Foundation
$0.00
$0.00
Additional Options
$150.00
$60.00
$150.00
$39.00
$150.00
$50.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
