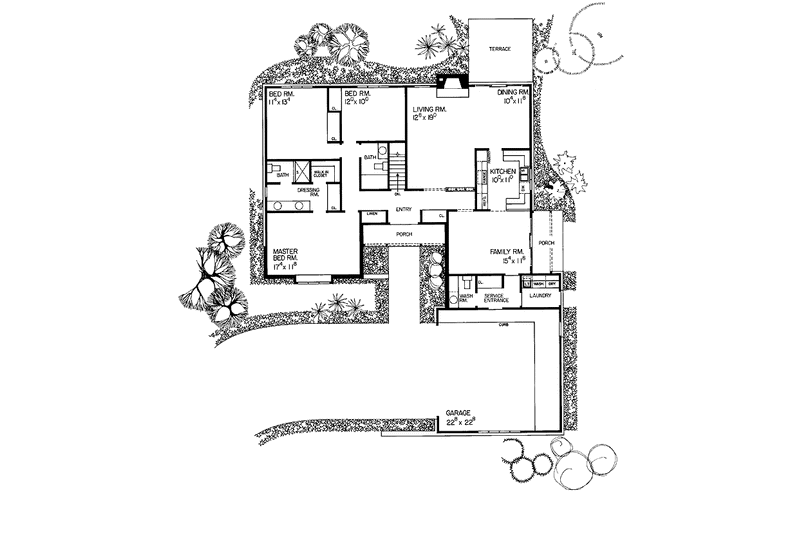

The curving front driveway produces an impressive approach to this delightful Tudor adaptation. A covered front porch shelters the centered entry hall which effectively routes traffic to all areas. The fireplace is the focal point of the spacious, formal living and dining areas. An efficient kitchen is conveniently located adjacent to the formal dining room and the informal family room. In addition to the two full baths in the sleeping zone, there is a handy washroom near the garage. Sliding glass doors opening from the dining room and family room provide easy access to the terrace and side porch.
3rd BR Closet:
12 sq/ft width 4' x depth 3'
33 sq/ft width 6' x depth 5' 6"
151 sq/ft width 13' 4" x depth 11' 4"
Bedroom 2 Closet:
18 sq/ft width 6' x depth 3'
120 sq/ft width 10' x depth 12'
Bedroom 3 Closet:
18 sq/ft width 6' x depth 3'
120 sq/ft width 11' 8" x depth 10' 4"
19 sq/ft width 3' x depth 6' 6"
178 sq/ft width 11' 8" x depth 15' 4"
45 sq/ft width 9' x depth 5'
110 sq/ft width 11' x depth 10'
45 sq/ft width 6' 6" x depth 7'
240 sq/ft width 19' x depth 12' 8"
72 sq/ft width 9' x depth 8'
202 sq/ft width 11' 8" x depth 17' 4"
54 sq/ft width 9' x depth 6'
Porch - Front:
67 sq/ft width 4' 6" x depth 15'
Porch - Rear:
144 sq/ft width 12' x depth 12'
Porch - Right:
72 sq/ft width 12' x depth 6'
