PLAN 1007-18
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 58'
Height : 32'
Width : 48'
Area
First Floor: 1283 sq/ft height 9'
Second Floor: 460 sq/ft height 8'
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Main Floor Laundry
Master Sitting Area
Sunroom
Outdoor Spaces
Screened Porch
Rooms
Dining Room:
126 sq/ft width 12' 8" x depth 10'
Entry:
72 sq/ft width 8' 6" x depth 8' 6"
Flex Room:
45 sq/ft width 7' x depth 6' 6"
Great Room:
340 sq/ft width 17' x depth 20'
Guest Bedroom:
202 sq/ft width 12' 8" x depth 16'
Kitchen:
90 sq/ft width 9' x depth 10'
Master Bathroom:
54 sq/ft width 9' x depth 6'
Master Bedroom:
208 sq/ft width 13' x depth 16'
Porch - Screened:
168 sq/ft width 12' x depth 14'
Utility Room:
30 sq/ft width 5' x depth 6'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

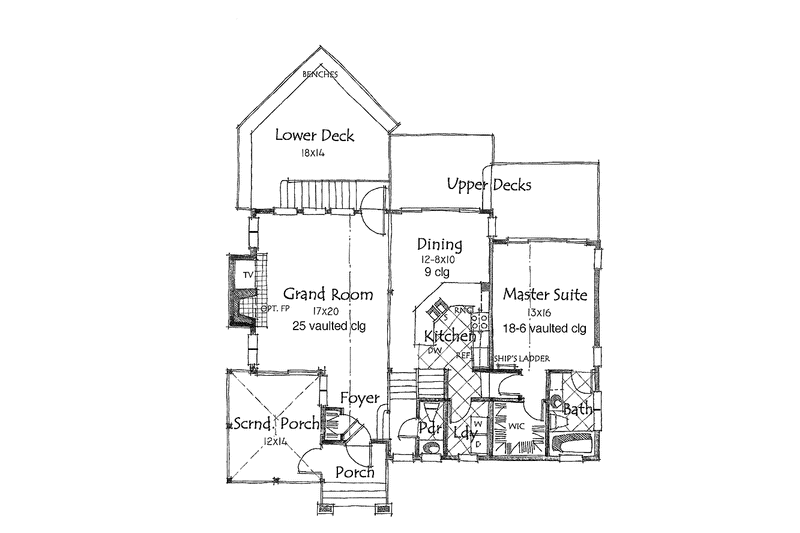

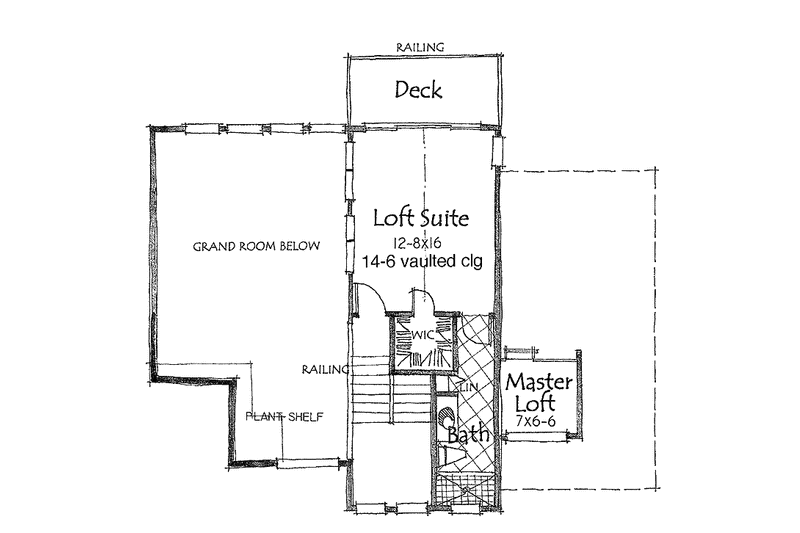

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$604.00
$692.00
$544.00
Foundation
$0.00
Framing
$0.00
Additional Options
$40.00
$100.00
$39.00
$100.00
$50.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
