PLAN 45-637
Photographs may show modified designs.
- Jump to:
- All (8)
- Floor plans (1)
Get Personalized Help
Key Specs
1710
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-866-445-9085
Phone: 1-866-445-9085
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
Only $1.99 Right Now
Use Code CTBSUMMER
Use Code CTBSUMMER
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.
Get Cost To Build Report
Limit one per order.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 45-637
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
This simple but charming traditional farmhouse brings back memories of yesterday with its large receiving porch and raised roof area. Although basic and conservative, it is loaded with big home features including: 1. Super energy efficient designed to save 50% on heating and cooling cost with these features: a. 2x6 walls with R-19 insulation b. 12” raised roof plate to accommodate 12” ceiling insulation to the outermost edge c. Energy efficient fireplace with fresh air intake d. Most plumbing located in interior walls so as not to interfere with the insulation e. Positive attic ventilation to store heat in the winter and exhaust heat in the summer 2. Living Room features include 14’ ceilings with exposed beams. Corner energy efficient fireplace. 3. Kitchen features include a walk-in pantry, large island with eating bar, cook top and separate built-in oven, ample counter space and a pass through to the porch 4. The master suite is larger than most homes of this size and features an en-suite complete with a soaking tub, separate shower, dual vanities, private toilet plus a super size walk-in closet 5. A home office is conveniently located for the homeowner and features built-in book shelves and a private bath entrance. The 14’ ceilings provide an open look that offers an array of decorating possibilities. 6. Designed for outdoor use, this plan has a rocking chair front porch plus an outdoor dining porch with space for an outdoor kitchen but a pass through makes it easy to do all of the food prep in the interior kitchen and pass it through when ready to serve. The dining porch is conveniently tucked into a space that is easily accessible from the kitchen but it is also designed to protect from wind and rain by having only one open side. For those sun shine days, a covered patio is accessible from the homes interior. Isolated from the adult side of the home, the kids bed rooms are ample size and both have a large walk in closet and a study desk area complete with book shelves. A jack and jill bath is accessible from both bed rooms and very private because of the guest half bath.
Floor Plans

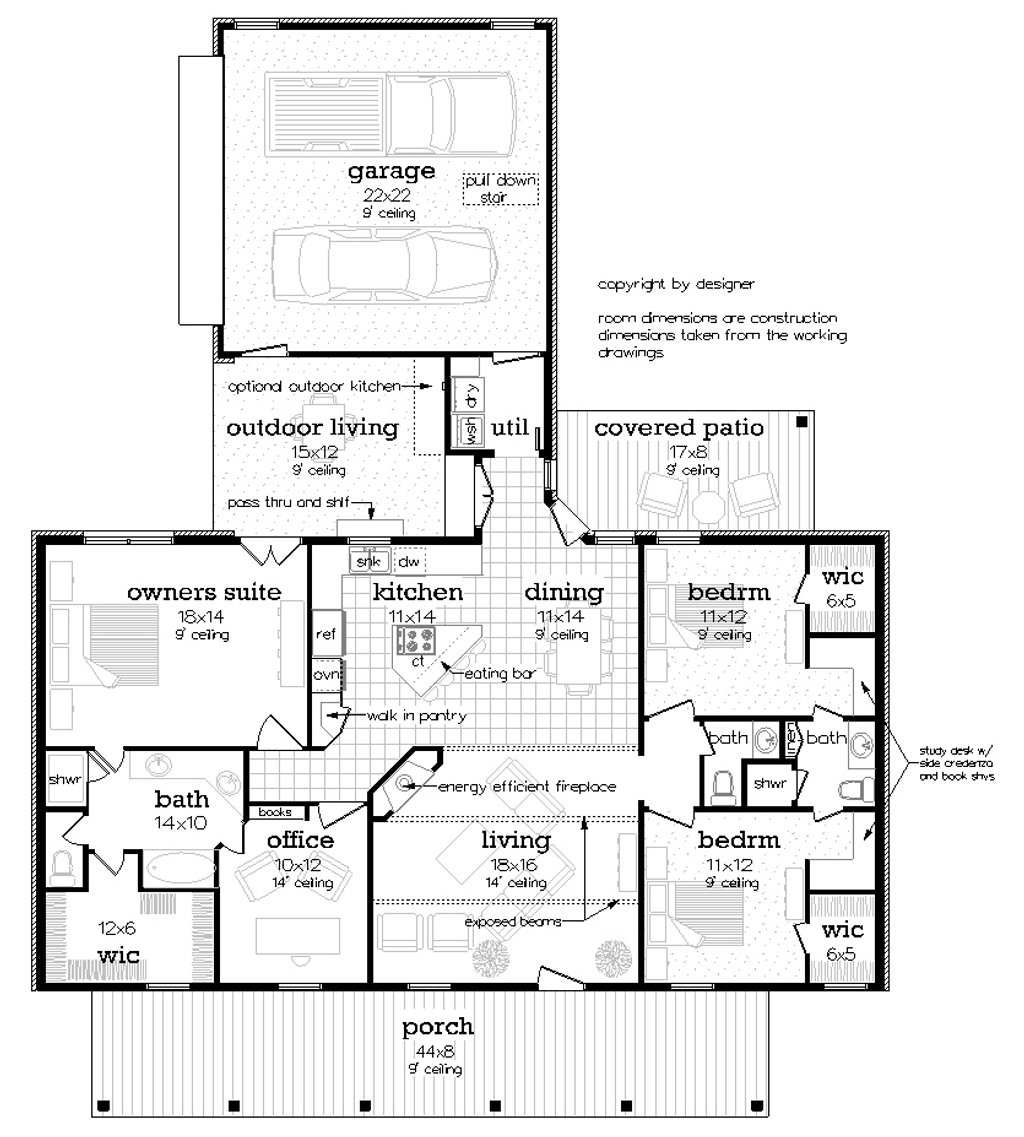

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 72'
Height : 26'
Width : 56'
Area
Garage : 530 sq/ft
Main Floor : 1710 sq/ft
Patios : 133 sq/ft
Porch : 544 sq/ft
Storage : 88 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 14' ceilings in the living room and office. Exposed beams in living room
Garage Ceiling : 9'
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Stick
Roof Type : gable
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Board and batt siding
Framing : 2x6
Insulation : 19
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
Oversized Garage
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
More
Additional Half Bath
Economical To Build
Jack & Jill Bath
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Drawing index, designer contact info, plan name/number, legal disclaimers.
- Foundation Plan(s): Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
- Floor Plan(s): Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
- Exterior Elevations: Exterior views
- Interior Elevations: Detailed drawings
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Specification(s): Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
Questions? Call 1-866-445-9085
Plan Set
PDF Set:
$1000.00
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1130.00
$1130.00
5 printed plan sets mailed to you.
8 Copy Set:
$1240.00
$1240.00
8 printed plan sets mailed to you.
5 Copy and PDF Set:
$1255.00
$1255.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Eight Copy and PDF Set:
$1365.00
$1365.00
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$1900.00
$1900.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Single Set:
$1085.00
$1085.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Monolithic Slab:
$0.00
$0.00
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Crawlspace:
$175.00
$175.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$150.00
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
2 Car Side-Loading Garage:
$0.00
$0.00
Changes garage to side load
Additional Construction Sets:
$50.00
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$90.00
$90.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
