Full Specs & Features
Depth : 38'
Height : 17'
Width : 57'
First Floor: 1364 sq/ft
Main Ceiling : 8'
Primary Pitch : 6:12
Exterior Wall Framing
Framing : 2"x6"
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Unfinished Future Space
Suited For View Lot
Covered Rear Porch
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

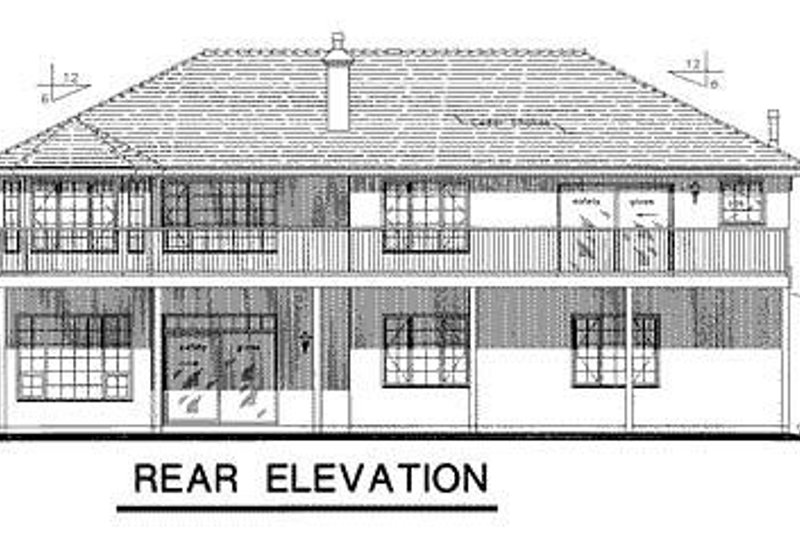

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

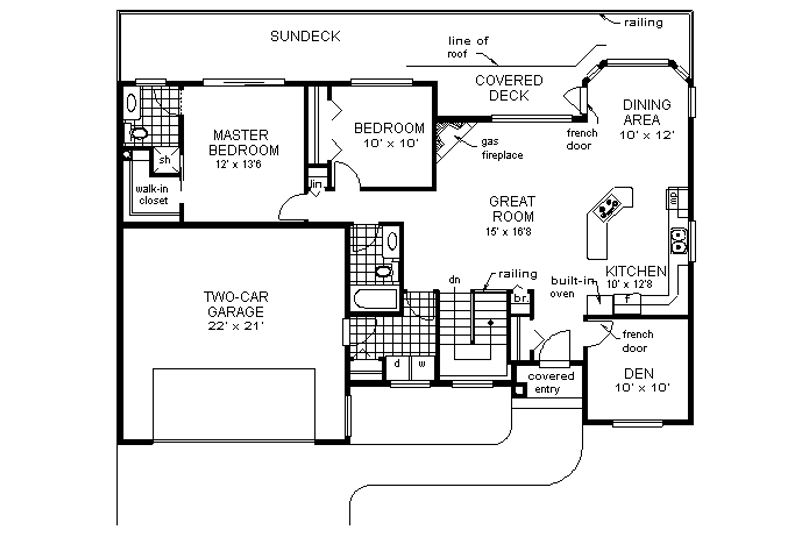

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
