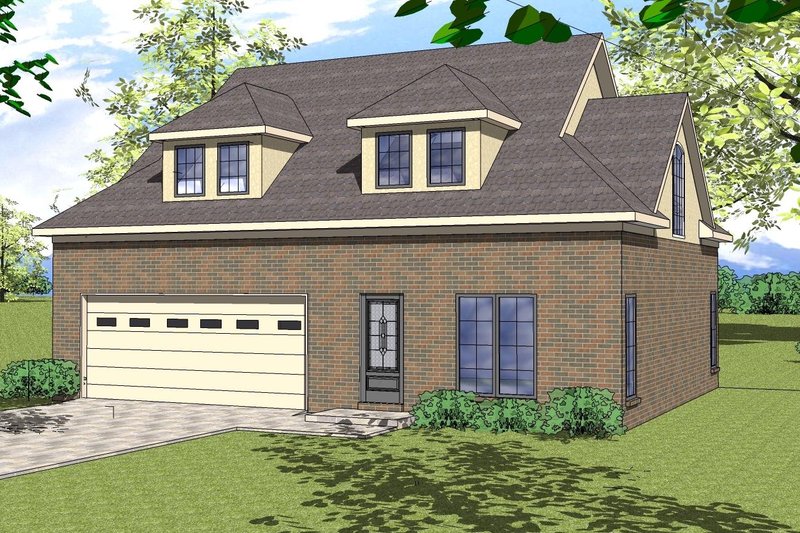

PLAN 8-313

Photographs may show modified designs.

Save
Home  /  Style  /  Southern

Key Specs


Plan Sq Ft

1231
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

1.5
Baths

Plan Floors

2
Floors

Plan Garages

1
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
$550.00
Best Price Guaranteed*
Also order by phone: 1-866-445-9085
Cost-to-Build Estimates

Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-866-445-9085
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-866-445-9085
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 8-313

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.

Modify This Plan

Full Specs & Features


Dimension

Depth : 30'

Width : 40'

Area

Garage : 620 sq/ft

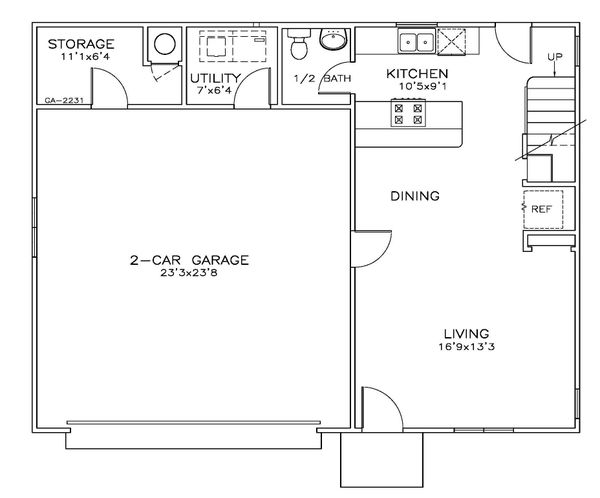

Main Floor : 534 sq/ft

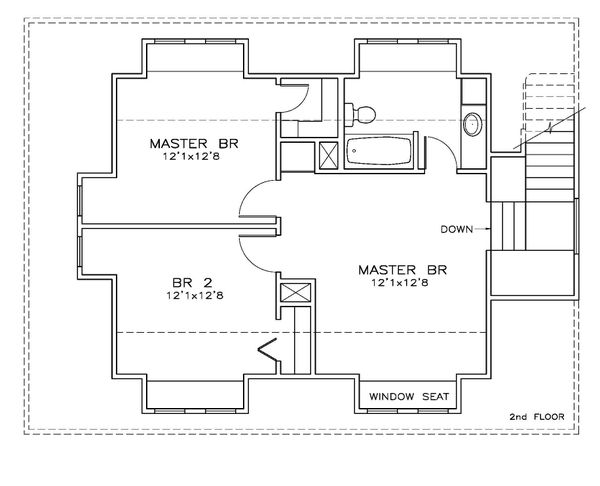

Upper Floor : 697 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 9'

Lower Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Bedroom Features

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Additional Room Features

Main Floor Laundry

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

More

Additional Half Bath

What's Included In This Plan Set


  • Title Sheet - Isometric of Front Elevation
  • Concrete Slab Foundation Plan ‐ shows the foundation plan and details. ¼” = 1’-0. (Optional crawlspace with similar details)
  • Floor Plan(s) ‐ shows the placement of interior walls and the dimensions for rooms, doors/sizes, windows/sizes, stairways, etc. of each level of the house. ¼” = 1’-0 scale
  • Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches. ¼” = 1’-0
  • Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the general construction of the home, insulation, studwalls, rafters, etc,
  • Interior Elevations Millwork ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.
  • Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers.
  • Roof Framing Plan - provides guideline for rafters, ridges, hip framing
  • Electrical Plan ‐ suggested schematic shows the locations for fixtures, outlets, switches, fans, lighting, etc.
  • Notes & Details ‐ per IRC 2015
» See important information before purchasing.
Questions? Call 1-866-445-9085

Plan Set

PDF Set:
$550.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$850.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$300.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$50.00
Wood 2x6

Additional Options

Right-Reading Reverse:
$100.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets:
$50.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
