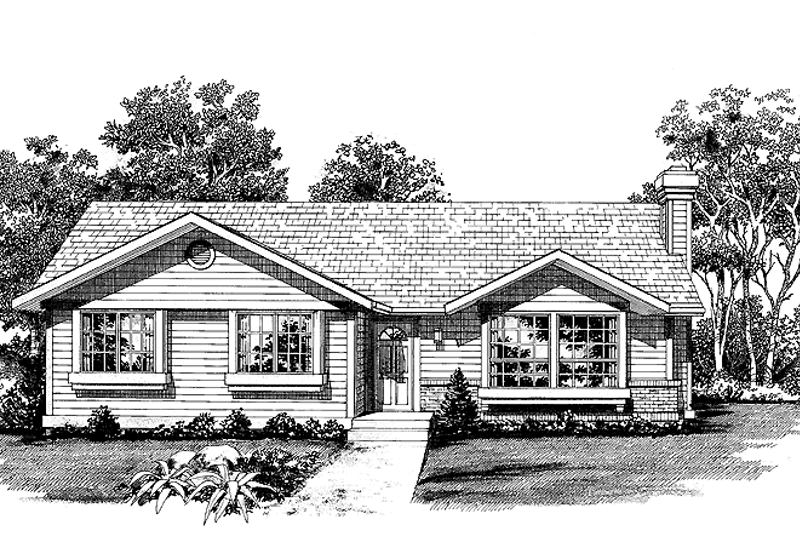

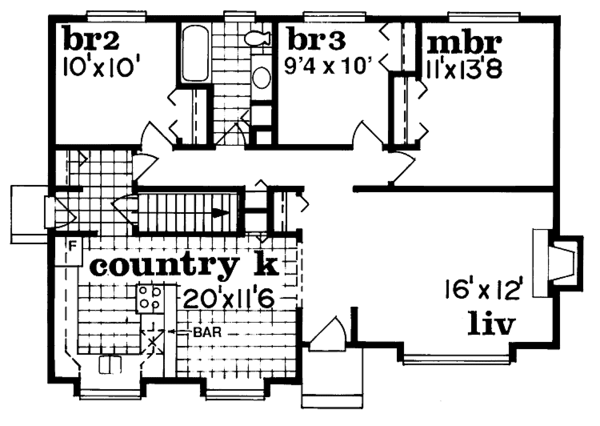

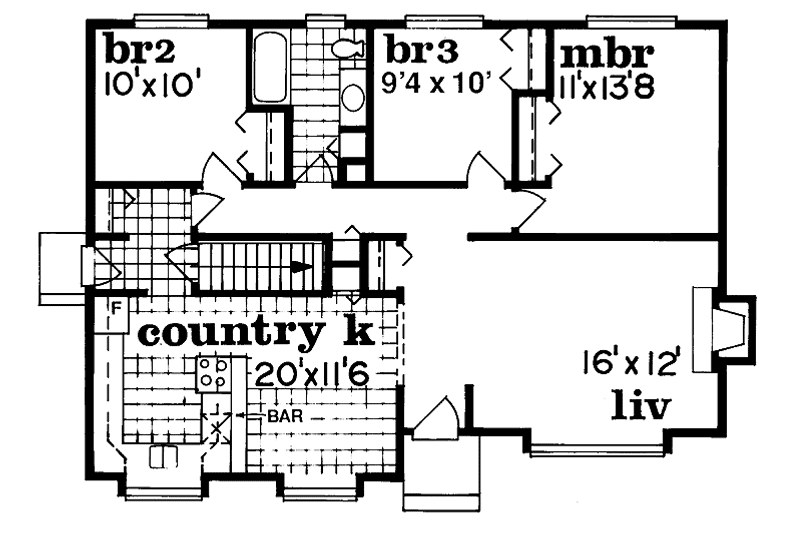

This compact three-bedroom design is ideal as a starter or retirement home. Its siding-and-brick combination and lovely bumped-out windows give it a cozy, rustic feeling. The bedrooms are positioned along the rear of the home for maximum privacy. Each bedroom has a large window overlooking the rear yard; the master bedroom is especially spacious. The entry opens directly to a large living area with a box-bay window and a fireplace. The country kitchen contains long, roomy counters, a convenient serving bar and a breakfast nook with a box-bay window. The side door provides quick, easy access to the kitchen and to the basement. If needed, the basement may be finished for additional living space or bedrooms.
3rd BR Closet:
8 sq/ft width 4' x depth 2'
1260 sq/ft width 30' x depth 42'
100 sq/ft width 10' x depth 10'
Bedroom 2 Closet:
9 sq/ft width 4' 8" x depth 2'
93 sq/ft width 10' x depth 9' 4"
Bedroom 3 Closet:
9 sq/ft width 4' 8" x depth 2'
13 sq/ft width 3' x depth 4' 6"
73 sq/ft width 10' x depth 7' 4"
6 sq/ft width 3' 4" x depth 2'
22 sq/ft width 11' 5" x depth 2'
192 sq/ft width 16' x depth 12'
150 sq/ft width 13' 8" x depth 11'
11 sq/ft width 5' 7" x depth 2'
Porch - Front:
18 sq/ft width 4' x depth 4' 8"
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Additional Use License
|Additional Use License.|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
|Unlimited Use License
|Unlimited Use License.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
