Full Specs & Features
Depth : 45'
Height : 21'
Width : 42'
First Floor: 1125 sq/ft
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room

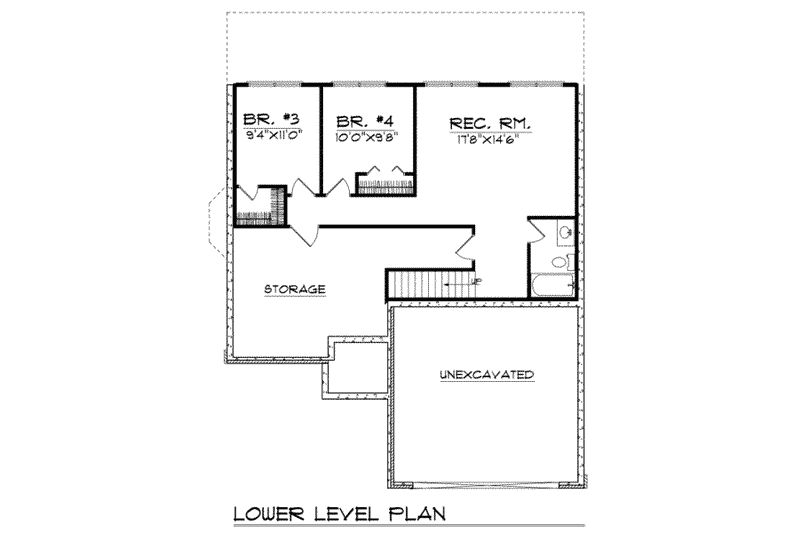

Hobby Rec Room Game Room
Unfinished Future Space
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot

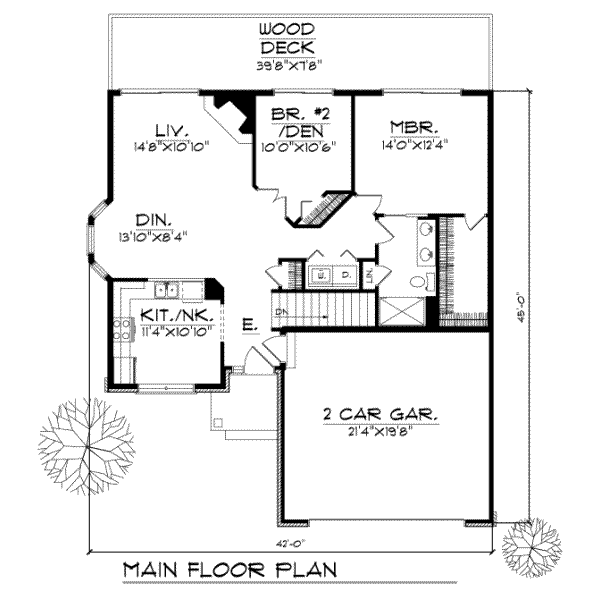

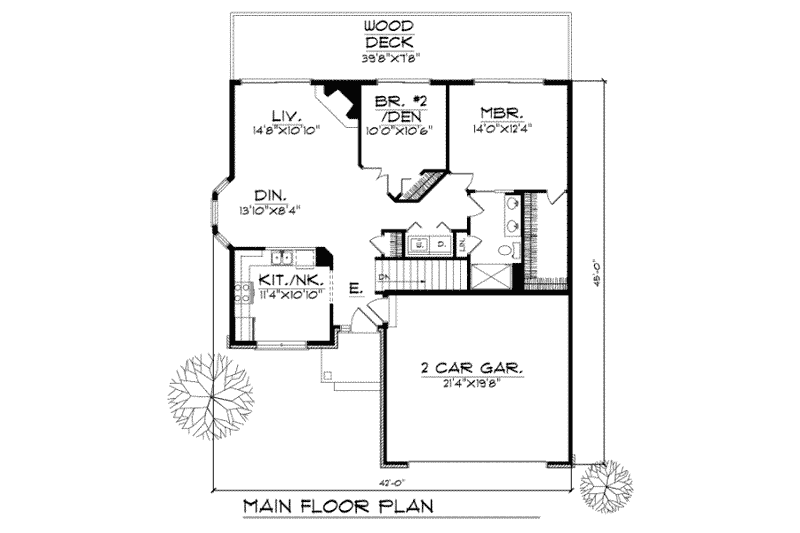

Den/Office or Bedroom 2:
105 sq/ft width 10' x depth 10' 6"
115 sq/ft width 13' 10" x depth 8' 4"
419 sq/ft width 21' 4" x depth 19' 8"
122 sq/ft width 11' 4" x depth 10' 10"
158 sq/ft width 14' 8" x depth 10' 10"
172 sq/ft width 14' x depth 12' 4"
304 sq/ft width 39' 8" x depth 7' 8"
What's Included In This Plan Set

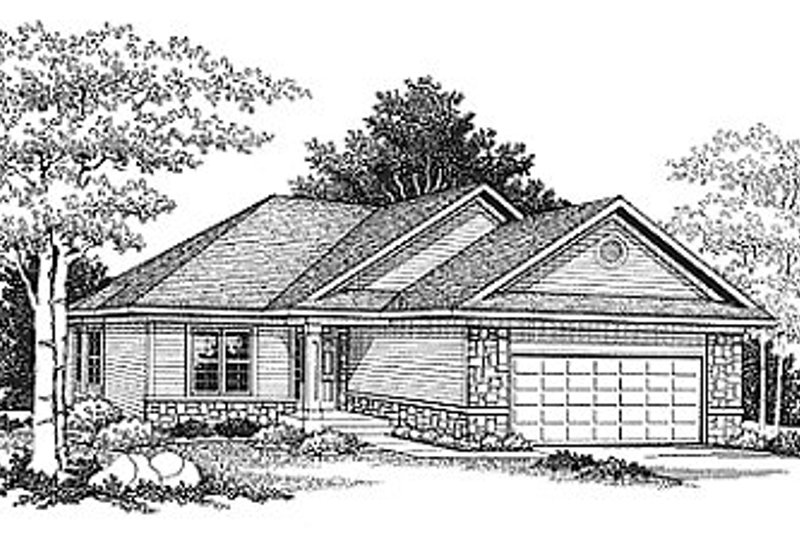

- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

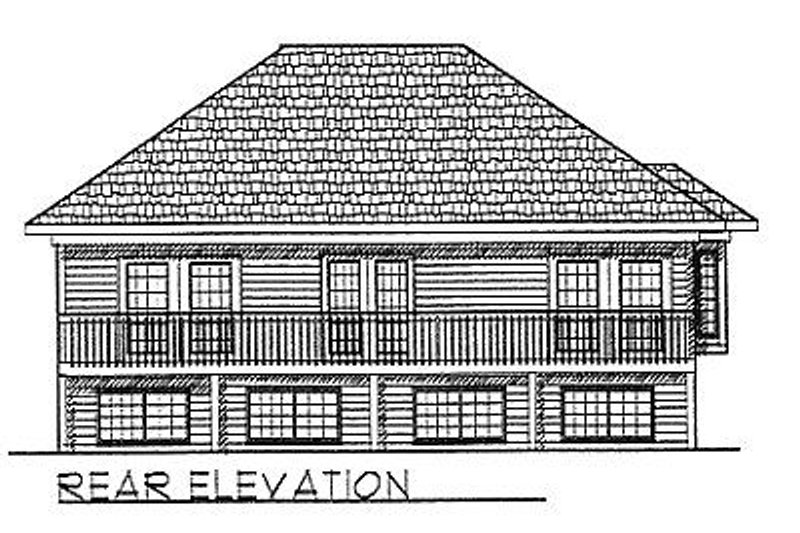

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
