Full Specs & Features
Depth : 28'
Height : 25'
Width : 32'

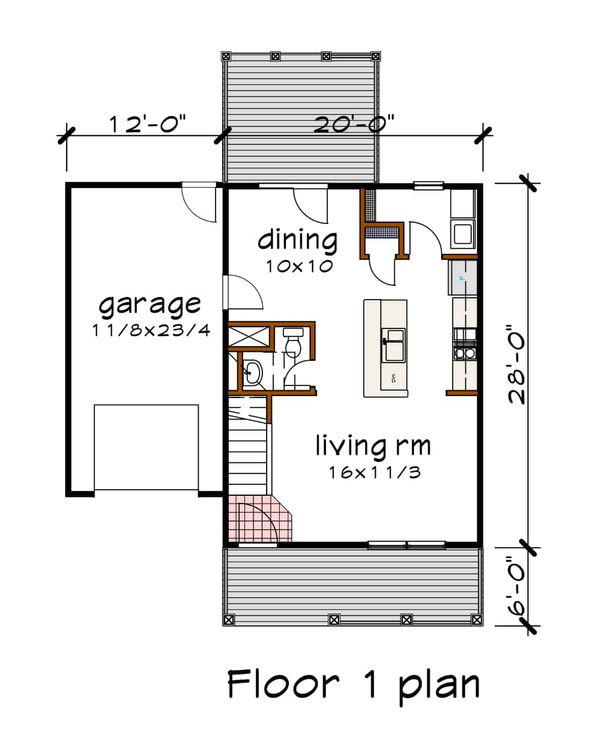

First Floor: 560 sq/ft height 8'

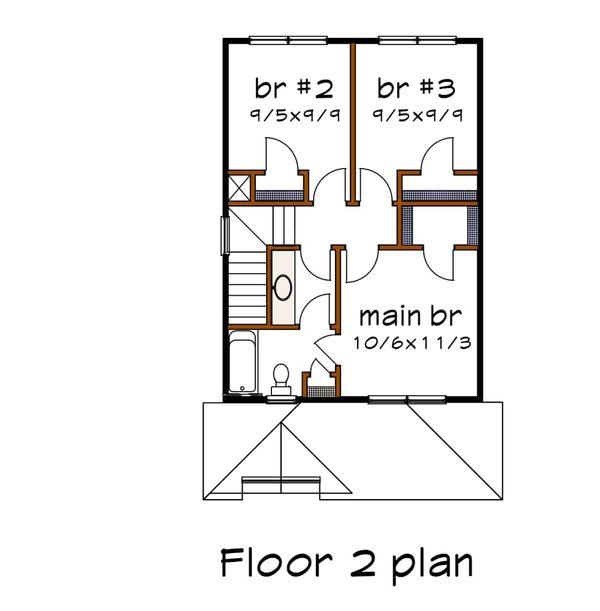

Second Floor: 527 sq/ft
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Primary Pitch : 9:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Upstairs Master Bedrooms
Walk In Closet
Suited For Narrow Lot
Covered Front Porch
What's Included In This Plan Set
- Cover sheet - General notes, structural notes, joist and rafter tables, abbreviations, and energy guidelines. Most plans have a rendering of the elevation.

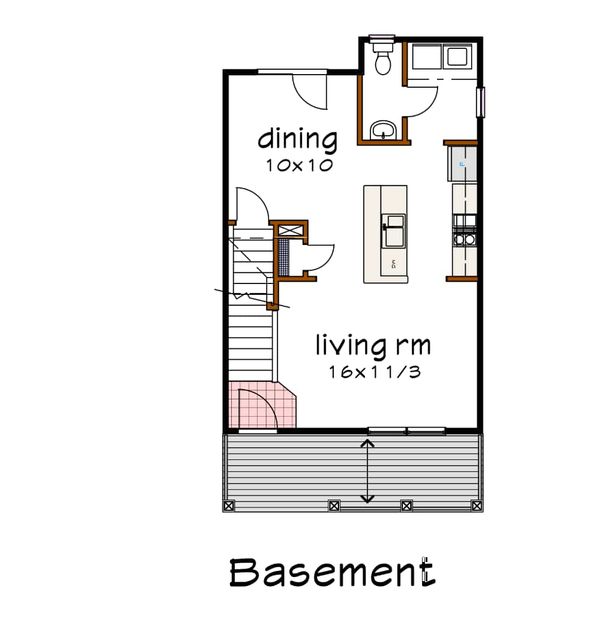

- Foundation Plan - A crawl type foundation is standard, but an alternate slab foundation can be included. Some plans have a basement foundation available.
- Floor Plan(s) - Floor and roof plan(s) and showing all dimensions, joist/rafter directions, cabinets, window and door sizes, etc.
- Exterior Elevations - All elevations drawn at 1/4"=1'-0". Electrical Plans - All electrical located on separate drawings. Schedules - Door and window schedules.
- Building section(s) - Section through the building showing stairs, vertical dimensioning, and structural information.
- Details - Various details describing foundation, wall, column details, roof assemblies, porch and deck details... etc.
- Cabinet Elevations - Kitchen cabinet elevations @ 3/8"=1'-0" Roof Plan - Roof plan at 1/8"=1'-0"
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
