• Split bedroom layout for privacy. • Open kitchen/dining and great room – perfect for entertaining – the open layout creates a larger spacious feel. • The master bedroom is separated from the other bedrooms for privacy and has a walk-in closet. • The master bath has dual sinks, plenty of storage, and a large custom shower. • The laundry room is tucked off the kitchen and hidden with a sliding barn-style door. • Bedrooms 2 and 3 share a nice sized bath. • The rear porch is covered and 6 feet deep – perfect for expanding your living space outdoors.
Full Specs & Features
Depth : 33' 6"
Height : 20'
Width : 44'
Main Floor : 1035 sq/ft
Porch : 284 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8/12
Roof Framing : truss
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2x4 & 2x6
Walk In Closet
Additional Room Features
Great Room Living Room
Main Floor Laundry
Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Zero Lot Lines
Covered Front Porch
Covered Rear Porch
Economical To Build
Suited For Vacation Home
Energy Efficient Features
What's Included In This Plan Set
» See important
information before purchasing.
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

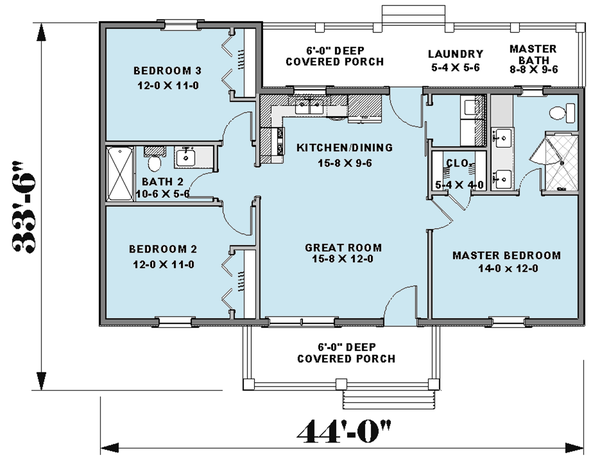

Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
