PLAN 1060-200
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-866-445-9085 for assistance.
Plan Description
This country design floor plan is 504 sq ft and has 0 bedrooms and 0 bathrooms.
Floor Plans
Full Specs & Features
Dimension
Depth: 20'
Height: 13' 8"
Width: 25' 2"
Area
Patios: 500 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling: 8'
Roof
Primary Pitch: 6
Roof Framing: Truss
Exterior Wall Framing
Exterior Wall Finish: Brick Stucco
More
Economical To Build
What's Included In This Plan Set
- Cover Sheet: General Notes for framing, plumbing, electrical, window/egress, concrete, fastener schedule; plan index.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.

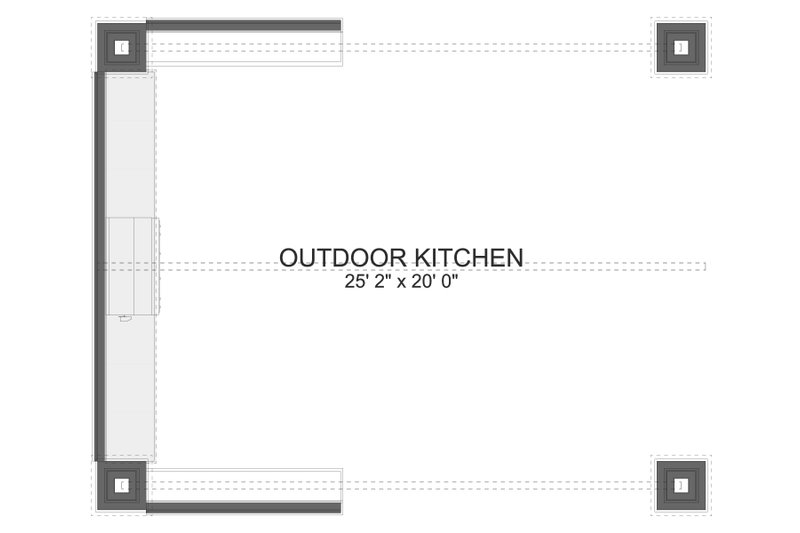

- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

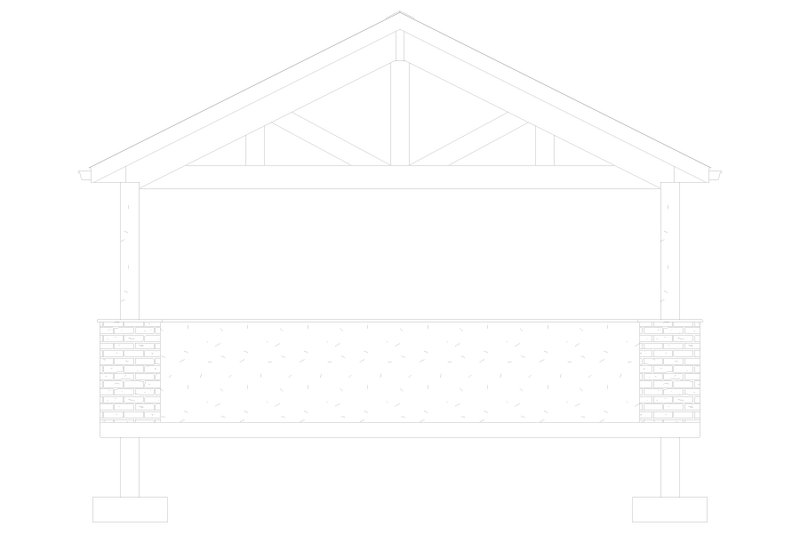

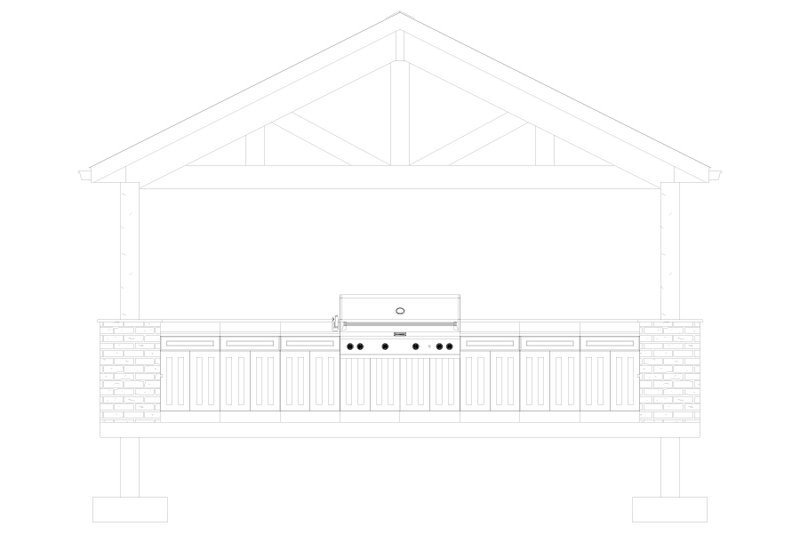

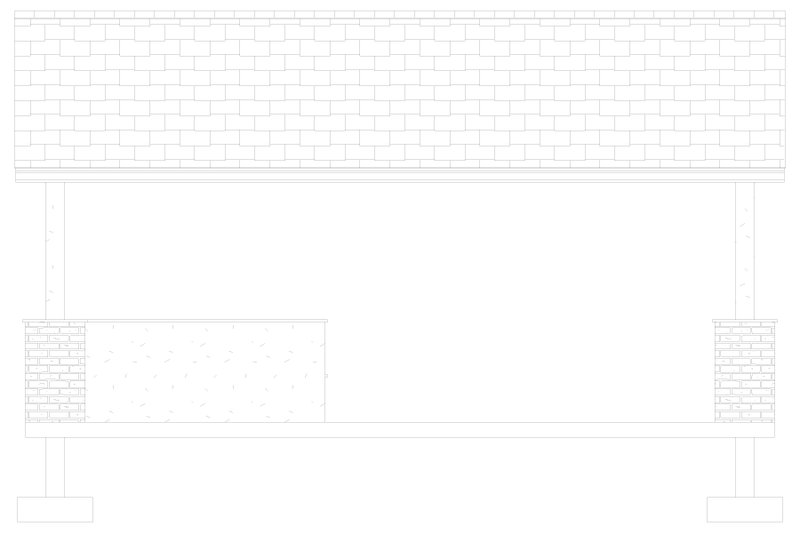

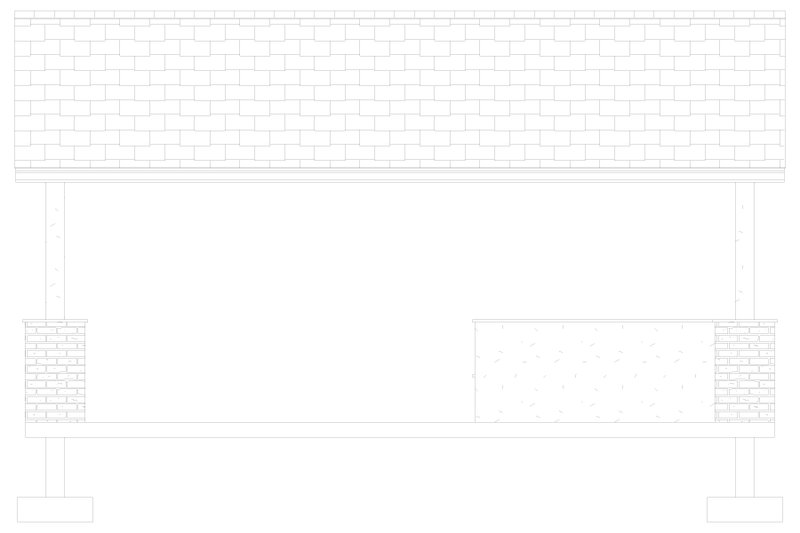

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): Sectional details showing room and attached exterior details, floor-to-floor heights.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. with a legend.
- Detail Sheet(s): Roof vents, heel truss, soffit/ridge vents, stair framing, fasteners and connectors, flashing and air sealing (reference).
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): If included, the framing layout is intended to be a suggested layout only. Will typically show joist direction, stair opening, bearing walls.
- Wall Section(s): Sectionals showing wall types and details.
- Energy Guidelines: Climate zone estimations by component; R-values, U-factors, SHGC, air barrier & insulation installation criteria table.
